Bitumen 100/120

Bitumen 100/120 is another grade of penetration bitumen, similar to Bitumen 85/100 but softer. Bitumen 100/120 is less commonly used compared to other grades but is crucial in specialized applications requiring extra flexibility.

  • Appearance: Black solid or a viscous liquid
  • HS Code: 27132000

Package: Bitumen are packed in

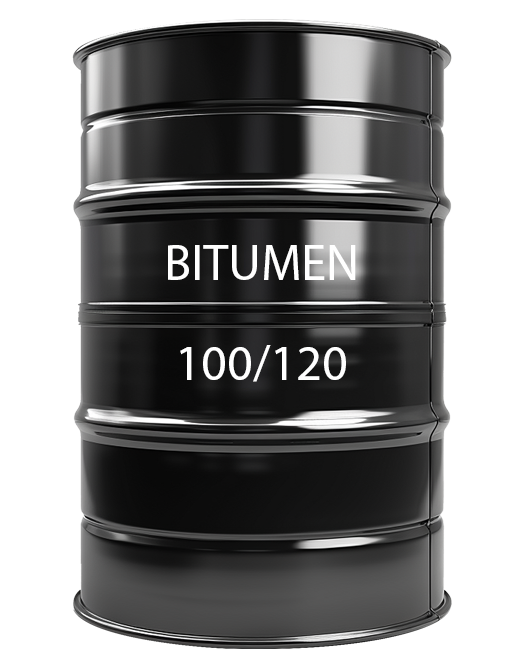

  • New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
  • Bulk Bitumen Tank Container

Bitumen 100/120 – Technical Specifications

Properties Units Limits Test Methods
Penetration @25°C (77°F), 100gm, 5sec 0.1MM 100-120 ASTM D5
Softening Point °C °C Min. 40 ASTM D36
Ductility @25°C, 5 cm/min CM Min. 100.0 ASTM D113
Flash Point Cleveland open cup °C Min. 250.0 ASTM D92
Solubility in Trichloroethylene % Min. 99.5 ASTM D2042
After Thin-Film Oven Test ASTM D1754

Loss on Heating

%Wt Max. 0.5 ASTM D6

Drop in Penetration

% Max. 20.0 ASTM D5
Spot Test Negative AASHTO T102
*American association of state highway officials

Main Applications Of Bitumen 100/120

The main application of Bitumen 100/120 is in road construction, specifically for producing flexible asphalt pavements in cold climates. Due to its softer nature, Bitumen 100/120 is particularly well-suited for environments where the pavement must endure significant temperature fluctuations, especially in colder regions where other, harder grades might become brittle and prone to cracking.

  1. Asphalt Paving in Cold Climates:
    Bitumen 100/120 is used to produce asphalt mixes that are more flexible and less likely to crack in low temperatures. This makes it ideal for roads, highways, and other surfaces in regions with harsh winters.
  2. Surface Dressing:
    It is used in surface dressing applications, where a thin layer of bitumen is sprayed on the road surface and then covered with aggregate. This process provides a protective layer that helps prolong the road’s life by preventing water ingress and enhancing skid resistance.
  3. Maintenance of Existing Roads:
    Bitumen 100/120 is also used in maintenance processes like crack sealing and patching, where its flexibility can help repair damaged sections of roads without introducing new vulnerabilities.

This bitumen grade ensures that road surfaces remain pliable and durable, even under conditions where more rigid materials might fail.

Various Packing Method for Bitumen

Packing bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of bitumen, the transportation method, and the end-use. Here are the various methods used to pack bitumen:

Drum Packing

Bitumen is commonly packed in steel drums, which are robust and provide good protection during transportation.

Jumbo Packing

Bitumen is packed in high-density polyethylene (HDPE) bags and are lined with a plastic bag to prevent leakage.

Tanker Vessel

Bitumen can be transported in bulk using specially designed tankers equipped with heating systems to maintain the bitumen in a molten state.

Tank Container

These are large, insulated containers used for the international transport of bitumen.
