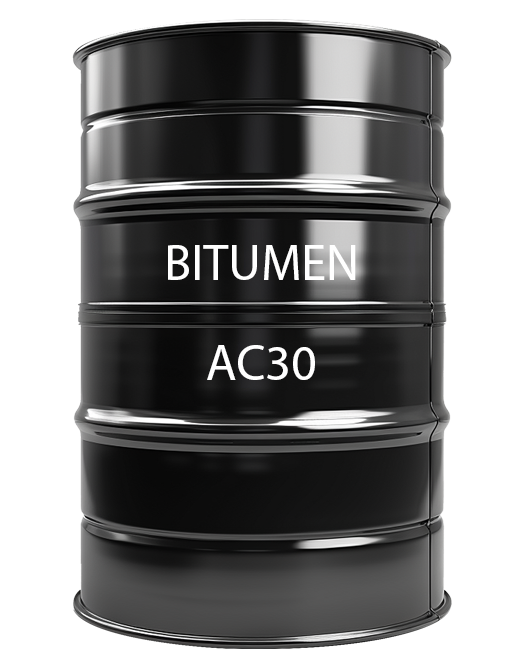

Bitumen AC30

Bitumen AC30 refers to Asphalt Cement with a viscosity grade of 30, The “30” represents its viscosity, measured in Poise at 60°C. Bitumen AC30 is used in road construction and paving applications that require a very stiff and durable binder to withstand extreme traffic loads and environmental conditions.

  • Appearance: Black solid or a viscous liquid
  • Standards: ASTM D3381–09
  • HS Code: 27132000

Package: Bitumen are packed in

  • New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
  • Jumbo Bags of 1Ton
  • Bulk Bitumen Tank Container

Bitumen AC30 (ASTM D3381–09) – Technical Specifications

Properties Units Limits Test Methods
Viscosity, 140°F (60°C) P 3000±600 ASTM D2171
Viscosity, 275°F (135°C) cSt Min. 250 ASTM D2170
Penetration @25°C (77°F), 100gm, 5sec 0.1MM Min. 30 ASTM D5
Flash Point Cleveland open cup °C Min. 232 ASTM D92
Solubility in Trichloroethylene % Wt Min. 99.0 ASTM D2042
Tests on residue from thin-film oven test:

Viscosity, 140°F (60°C)

Pa.s Max. 15,000 ASTM D2170

Ductility, 77°F (25°C), 5 cm/min

CM Min. 15 ASTM D113
*As per ASTM D3381–09

Main Applications Of Bitumen AC30

The main applications of Bitumen AC30 are in heavy-duty road construction and paving projects that require high stiffness and durability to handle extreme traffic loads and hot climates. Key uses include:

  1. Highways and Major Roads:AC30 is widely used for high-traffic highways, expressways, and urban roads where vehicles, especially heavy trucks and buses, exert significant pressure on the pavement.
  2. Airport Runways and Taxiways:It is a preferred choice for airport runways, taxiways, and aprons, which need to withstand the heavy loads and stresses of aircraft during takeoff, landing, and taxiing.
  3. Industrial Zones and Ports:AC30 is used in industrial areas, ports, and freight yards, where heavy vehicles and machinery frequently operate. Its stiffness helps prevent rutting and deformation caused by continuous weight.
  4. Warm or Hot Climates:In hot climates, AC30 bitumen performs well by resisting softening and deformation due to high temperatures, making it ideal for regions with tropical or desert environments.
  5. Bridges and Overpasses:AC30 is used in bridges, overpasses, and other elevated structures, where the pavement must be strong enough to handle both traffic loads and the structural stresses of the bridge.

In summary, Bitumen AC30 is primarily used for high-traffic roads, airport runways, industrial areas, and warm climate regions, where its high viscosity provides the strength and durability required to resist heavy loads and high temperatures.

Various Packing Method for Bitumen

Packing bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of bitumen, the transportation method, and the end-use. Here are the various methods used to pack bitumen:

Drum Packing

Bitumen is commonly packed in steel drums, which are robust and provide good protection during transportation.

Jumbo Packing

Bitumen is packed in high-density polyethylene (HDPE) bags and are lined with a plastic bag to prevent leakage.

Tanker Vessel

Bitumen can be transported in bulk using specially designed tankers equipped with heating systems to maintain the bitumen in a molten state.

Tank Container

These are large, insulated containers used for the international transport of bitumen.
