Bitumen AC40

Bitumen AC40 refers to Asphalt Cement with a viscosity grade of 40, The “40” represents its viscosity, measured in Poise at 60°C. This high-viscosity bitumen is used in applications requiring exceptional strength and durability to handle the most demanding conditions.

  • Appearance: Black solid or a viscous liquid
  • Standards: ASTM D3381–09
  • HS Code: 27132000

Package: Bitumen are packed in

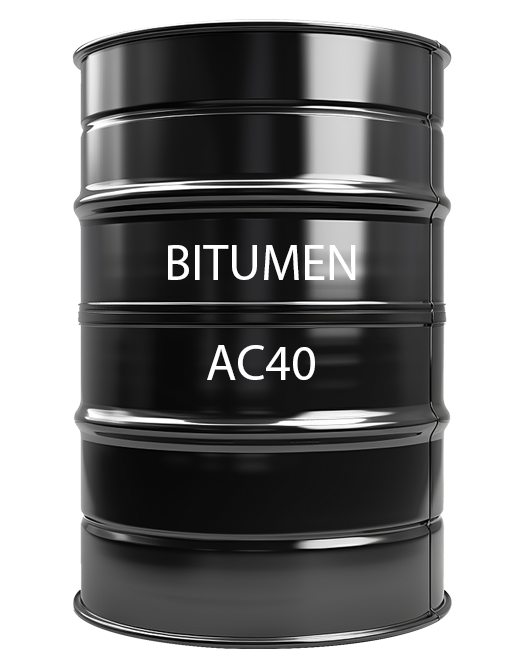

  • New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
  • Jumbo Bags of 1Ton
  • Bulk Bitumen Tank Container

Bitumen AC40 (ASTM D3381–09) – Technical Specifications

Properties Units Limits Test Methods
Viscosity, 140°F (60°C) P 4000±800 ASTM D2171
Viscosity, 275°F (135°C) cSt Min. 300 ASTM D2170
Penetration @25°C (77°F), 100gm, 5sec 0.1MM Min. 20 ASTM D5
Flash Point Cleveland open cup °C Min. 232 ASTM D92
Solubility in Trichloroethylene % Wt Min. 99.0 ASTM D2042
Tests on residue from thin-film oven test:

Viscosity, 140°F (60°C)

Pa.s Max. 20,000 ASTM D2170

Ductility, 77°F (25°C), 5 cm/min

CM Min. 10 ASTM D113
*As per ASTM D3381–09

Main Applications Of Bitumen AC40

Bitumen AC40 is primarily used in high-demand applications where maximum strength and durability are essential. The main applications include:

  1. Heavy-Traffic Highways:AC40 is ideal for high-traffic highways and expressways where there is substantial vehicle load, including large trucks and buses. Its high viscosity provides excellent resistance to rutting and deformation under heavy traffic conditions.
  2. Airport Runways and Taxiways:It is used for airport runways, taxiways, and aprons that experience significant stress from aircraft operations. AC40’s stiffness helps it withstand the weight and impact of heavy aircraft, ensuring durability and performance.
  3. Industrial and Port Areas:AC40 is suitable for industrial pavements, ports, and freight terminals, where heavy machinery and continuous vehicle traffic require a robust pavement that can handle high loads without deformation.
  4. Extreme Heat Environments:In extremely hot climates, AC40’s high viscosity prevents softening and deformation in high temperatures, making it suitable for regions with tropical or desert environments.
  5. Bridges and Overpasses:It is applied in bridges and overpasses, where the pavement must endure heavy loads and structural stress, providing additional strength and resistance.
  6. Heavy-Duty Pavement Layers:AC40 is used in base and intermediate layers of heavy-duty pavement structures where a high level of strength and resistance to deformation is required.

In summary, Bitumen AC40 is used in high-traffic areas, airports, industrial zones, and extreme climates, where its high viscosity ensures durability, strength, and resistance to deformation under demanding conditions.

Various Packing Method for Bitumen

Packing bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of bitumen, the transportation method, and the end-use. Here are the various methods used to pack bitumen:

Drum Packing

Bitumen is commonly packed in steel drums, which are robust and provide good protection during transportation.

Jumbo Packing

Bitumen is packed in high-density polyethylene (HDPE) bags and are lined with a plastic bag to prevent leakage.

Tanker Vessel

Bitumen can be transported in bulk using specially designed tankers equipped with heating systems to maintain the bitumen in a molten state.

Tank Container

These are large, insulated containers used for the international transport of bitumen.
