Cutback Bitumen MC-30

Cutback Bitumen MC30 is a type of medium-curing (MC) cutback bitumen where the “30” refers to its viscosity level. It is created by blending bitumen with a medium-volatile solvent like kerosene. This process lowers the viscosity of the bitumen, allowing it to be applied at ambient temperatures without the need for heating. Over time, the solvent evaporates, leaving behind the bitumen to bind the materials.

  • Appearance: Black solid or a viscous liquid
  • Standards: ASTM D2027, AASHTO M82-75 2008
  • HS Code: 27150090

Package: Bitumen are packed in

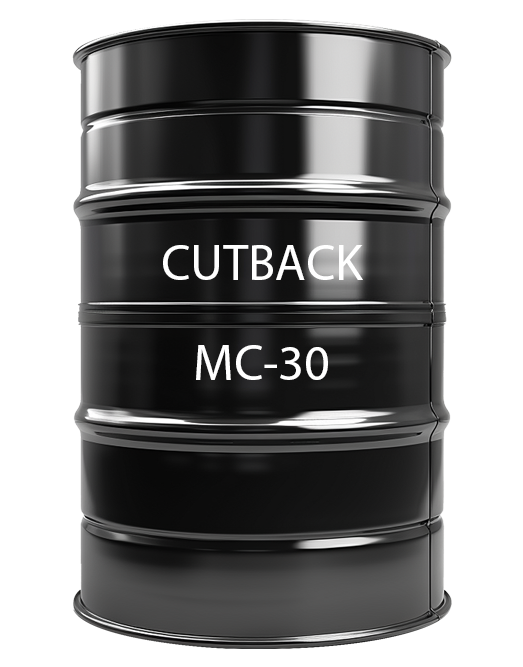

  • New Steel Drums of 200Kg
  • Reconditioned Steel Drums of 200Kg
  • IBC Tank of 1 Metric Ton

Cutback Bitumen MC30 (ASTM D2027, AASHTO M82-75 2008) – Technical Specifications

Properties Units Limits Test Methods
Kinematic Viscosity at 60°C mm2/s 30-60 ASTM D-2170
Flash Point (Tag Open-Cup), Min °C Min 38. ASTM D-1310
DISTILLATION TEST: (Distillate, Volume Percent of Total Distillate to 360°C)

To 255°C

% Vol. Max. 35 ASTM D-402

To 260°C

% Vol. 30-75 ASTM D-402

To 316°C

% Vol. 75-95 ASTM D-402

Residue from distillation to 360°C, by difference

% Vol. Min. 50 ASTM D-402
TEST ON RESIDUE FROM DISTILLATION:

Viscosity at 60°C

Pa.s 30-120 ASTM D2171

Ductility at 25°C

CM Min. 100 ASTM D-113

Solubility in Trichloroethylene

% Wt Min. 99 ASTM D-2042
Water % Wt Max. 0.2 ASTM D-95

Main Applications Of Cutback Bitumen MC30

The main application of Cutback Bitumen MC30 is in road construction and maintenance, particularly where lower application temperatures are needed due to its medium-curing properties. Below are its key uses:

  1. Prime Coating: Cutback Bitumen MC30 is primarily used as a prime coat on granular base layers (such as crushed stone or gravel) in road construction. It helps:
    • Penetrate and bind loose particles in the base layer.
    • Stabilize the surface for the application of asphalt or other pavement materials.
    • Improve the adhesion between the base course and the next pavement layer, ensuring the pavement’s overall stability.
  2. Tack Coating: MC30 can also be applied as a tack coat to improve the bonding between an existing surface and a new layer of asphalt. This ensures that the two layers adhere well, minimizing the risk of delamination or separation under traffic loads.
  3. Surface Treatment: Sometimes used in surface dressing for low-traffic roads or areas where dust and erosion are concerns. It helps to create a waterproof layer that can protect the road surface from weather damage.
  4. Cold Mix Asphalt: It can be prepared using MC30 for pothole repairs and patching work. Since it can be mixed at ambient temperature, it is ideal for temporary repairs or regions where heating facilities are not available.
  5. Dust Control: MC30 is occasionally applied to unpaved roads or areas to control dust by binding loose particles, creating a more solid surface that generates less dust.

Cutback Bitumen MC30 is most commonly used for prime coating in road construction, ensuring a strong bond between the base and asphalt layers. It is also applied as a tack coat, in surface treatments, cold mix asphalt preparation, and for dust control. Its medium-curing nature allows it to be applied at lower temperatures and is especially useful in cooler climates or where heating equipment is not practical.

Various Packing Method for Cutback Bitumen MC30

Packing cutback bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of cutback bitumen, the transportation method, and the end-use. Here are the various methods used to pack cutback bitumen:

Steel Drum Packing

Cutback Bitumen is commonly packed in new or re-conditioned steel drums, which are robust and provide good protection during transportation.

IBC Tank Packing

Cutback Bitumen is commonly packed in new IBC tank or re-conditioned IBC tank, which are robust and provide good protection during transportation.

Drum Specification

Tare Weight
16±0.5Kg
Net Weight
190±5Kg
Gross Weight
206±5Kg

Loadability in Containers

No. of Drums
Net Weight
In 20Ft Contianer
with Pallet
80
~14.8 Ton
without Pallet
80
~14.80 Ton
In 40Ft Contianer
with Pallet
140
~25.90 Ton
without Pallet
140
~25.90 Ton

IBC Tank Specification

Tare Weight
65±3Kg
Net Weight
950±50Kg
Gross Weight
1015±50Kg

Loadability in Containers

No. of Tanks
Net Weight
In 20Ft Container
20
~19.0 Ton
In 40Ft Container
28
~27.0 Ton
