Oxidised Bitumen 95/40

Oxidized Bitumen 95/40 (also known as Blown Bitumen 95/40) is a specialized grade of bitumen produced by blowing air through bitumen at high temperatures, resulting in a material with enhanced properties.

  • Appearance: Black solid or a viscous liquid when heated
  • Standards: BS EN 13304-2009
  • HS Code: 27132000

Package: Bitumen are packed in

  • New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
  • Jumbo Bags of 1Ton
  • Other Pack 25kg Kraft/PP Bag, Metal Pails, Carton Box

Oxidised Bitumen 95/40 (BS EN 13304-2009) – Technical Specifications

Properties Units Limits Test Methods
Penetration @25°C (77°F), 100gm, 5sec 0.1MM 30-40 ASTM D5
Softening Point °C °C 90-100 ASTM D36
Ductility @25°C, 5 cm/min CM Min. 1.5 ASTM D113
Solubility in CS2 %Wt Min. 99 ASTM D4
Flash Point Cleveland open cup °C Min. 260 ASTM D92
Specific Gravity at 25°C 1.00-1.05 ASTM D70
After Rolling Thin-Film Oven Test (RTFO) ASTM D1754

Loss on Heating

%Wt 0.2 ASTM D6

Main Applications Of Oxidised Bitumen 95/40

Oxidized Bitumen 95/40 is widely used across various industries due to its enhanced properties. Various applications are

  1. Waterproofing and Roofing: Commonly used in roofing membranes, felt products, and sealants to prevent water infiltration and protect structures.
  2. Road Construction and Maintenance: Acts as a crack sealant and joint filler for highways, bridges, and pavements, ensuring flexibility and durability in road surfaces.
  3. Corrosion Protection: Coats pipelines and metal structures to prevent rust and chemical degradation, extending their lifespan in harsh environments.
  4. Electrical Insulation: Provides effective insulation for electrical cables, transformers, and equipment, enhancing safety and performance.
  5. Construction Industry: Used in mastic asphalt and concrete to improve water resistance and overall durability of structures.
  6. Marine and Offshore Applications: Insulates ship decks and protects offshore structures from the corrosive effects of saltwater, ensuring long-lasting performance.

Overall, oxidized bitumen 95/40 is ideal for applications that require high temperature stability, durability, and excellent waterproofing capabilities, making it valuable in infrastructure, industrial, and marine settings.

Various Packing Method for Oxidised Bitumen 95/40

Packing Oxidised bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the transportation method, and the end-use. Here are the various methods used to packing oxidised bitumen:

Steel Drum Packing

Oxidised Bitumen is commonly packed in new or re-conditioned steel drums, which are robust and provide good protection during transportation.

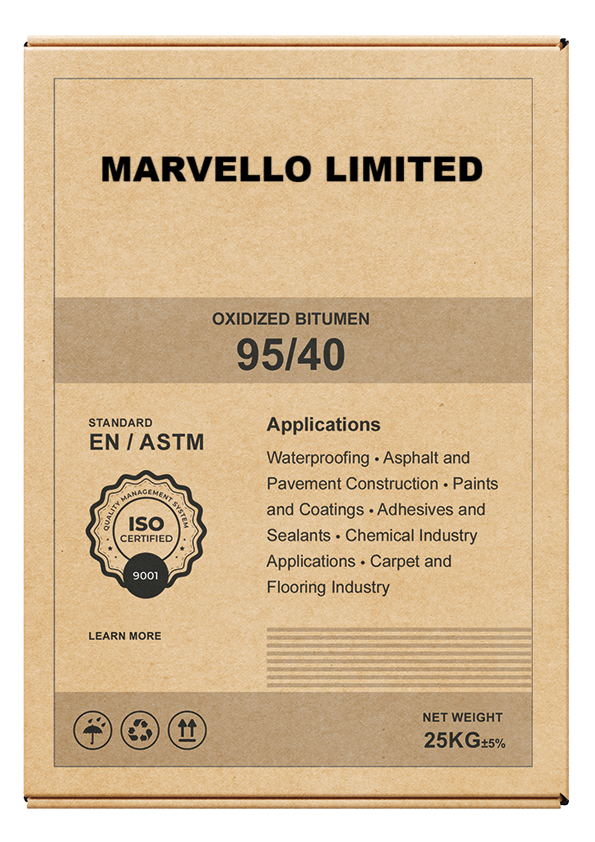

Kraft Bags / PP Bags / Carton Box

Oxidised Bitumen is packed in Kraft/PP Bags or Carton Box of 25Kg, which are robust and provide good protection during transportation.

Drum Specification

Weight
Tare
Net
Gross
150Kg
8.2±0.2Kg
150±3Kg
158±3Kg
180Kg
9.4±0.2Kg
180±3Kg
190±3Kg
200Kg
16±0.5Kg
200±5Kg
216±5Kg

Loadability in Containers

No. of Drums
Net Weight
150Kg Drums in 40Ft Contianer
with Pallet
160
~24.0 Ton
without Pallet
164
~24.60 Ton
180Kg Drums in 20Ft Contianer
with Pallet
80
~14.40 Ton
without Pallet
110
~19.8 Ton
200Kg Drums in 20Ft Contianer
with Pallet
80
~16.0 Ton
without Pallet
80
~16.0 Ton

Loadability in Containers

Container
In 20Ft
In 40Ft
No. of Pallet
20
26
Net Weight
~20.0 Ton
~26.0 Ton
Each pallet is loaded with 40 Kraft/PP Bags or 40 Carton Boxes
