PG 64-22 Bitumen

Performance Grade (PG) bitumen PG 64-22 is an asphalt binder designed to perform well under a range of climate conditions, specifically for regions with moderate to warm climates and occasional cold temperatures. It is part of the Superpave Performance Grading (PG) system, which selects bitumen based on the maximum and minimum pavement temperatures it can withstand.

Appearance: Black solid or a viscous liquid
Standards: AASHTO M 320-16
HS Code: 27132000

Package: Bitumen are packed in

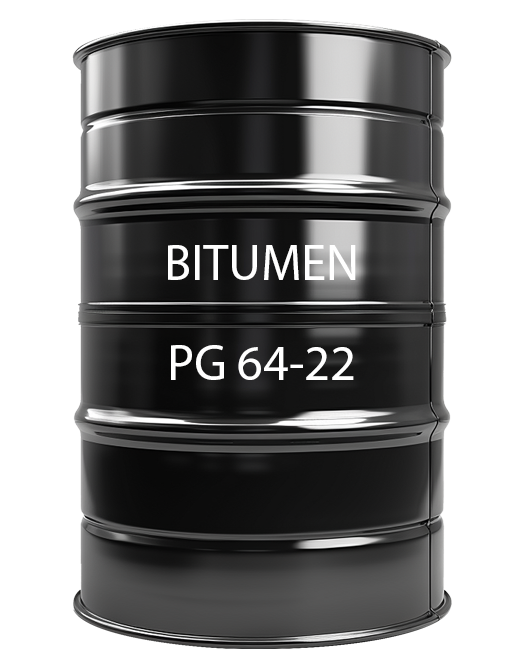

New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
Jumbo Bags of 1Ton
Bulk Bitumen Tank Container

Performance Grade PG 64-22 Bitumen – Technical Specifications

Properties	Units	Limits	Test Methods
Average 7-day maximum pavement design temperature	°C	<64
Minimum pavement design temperature^a	°C	>16
Original Binder
Flash Point	°C	Min. 230	AASHTO T48
Viscosity^b @135°C	Pa.s	Max. 3.0	AASHTO T316
Dynamic Shear^c , G*/sin δ^d at 64°C at 10rad/s	kPa	Min. 1.0	AASHTO T315
Residual Binder from Rolling Thin-Film Test (AASHTO T240 / ASTM D2872)
Mass change^e	%Wt	Max. 1.0	AASHTO T240
Dynamic Shear, G*/sin δ^d at 64°C at 10rad/s	kPa	Min. 2.2	AASHTO T315
Pressure Aging Vessel Residue (PAV)
PAV Temperature	°C	100	AASHTO R28
Dynamic Shear, G*.sin δ^d at 25°C at 10rad/s	kPa	Max. 5000	AASHTO T315
Creep Stiffness^f at -12°C			AASHTO T313
– S value	Mpa	Max. 300
– M value (slope)		Min. 0.30
Direct Tension^f at, -12°C			AASHTO T314
– Failure strain, test temp @ 1.0 mm/min	%	Min. 1.0
Notes a – Pavement temperatures are estimated from air temperatures using an algorithm contained in the LTPP Bind program, may be provided by the specifying agency, or by following the procedures as outlined in M323 and R35. b – This requirement may be waived at the discretion of the specifying agency if the supplier warrants that the asphalt binder can be adequately pumped and mixed at temperatures that meet all applicable safety standards. c – For quality control of unmodified asphalt binder production, measurement of the viscosity of the original asphalt binder may be used to supplement dynamic shear measurements of G/sinδ at test temperatures where the asphalt is a Newtonian fluid. d – G/sin? = high temperature stiffness and G* sinδ = intermediate temperature stiffness. e – The mass change shall be less than 1.00 percent for either a positive (mass gain) or a negative (mass loss) change. f – If the creep stiffness is below 300 MPa, the direct tension test is not required. If the creep stiffness is between 300 and 600 MPa, the direct tension failure strain requirement can be used in lieu of the creep stiffness requirement. The m-value requirement must be satisfied in both cases.

Main Applications Of Performance Grade PG 64-22 Bitumen

Highways and Major Roads: Commonly used for paving highways, expressways, and arterial roads in regions with moderate to warm climates. Provides excellent resistance to rutting under heavy traffic and high temperatures.
Urban Streets and Local Roads: Suitable for urban streets and local roads, where temperature variations occur, ensuring durability and performance in moderate weather.
Parking Lots and Driveways: Ideal for commercial and residential parking areas, driveways, and access roads, offering a strong surface that can withstand regular vehicle loads.
Bridges and Overpasses: Used in the construction of bridge decks and flyovers, where it provides stability against deformation and cracking caused by thermal stresses.
Airport Runways and Taxiways: Suitable for airport pavements, including runways and taxiways, as it can handle the stresses from aircraft while maintaining performance.
Rehabilitation and Overlays: Applied in asphalt overlays and rehabilitation projects, improving the performance and extending the life of existing pavements.
Industrial Areas: Used in industrial pavements and service roads, where it can support moderate to heavy traffic loads and provide durability in varying temperatures.

PG 64-22 bitumen is a versatile binder suitable for a range of applications, including highways, urban streets, parking lots, bridges, and airport pavements. Its ability to resist rutting in high temperatures and cracking in colder conditions makes it an ideal choice for pavement construction and maintenance in moderate climates.
